8:30 Arrival;5 RTU 14x20x2 filters (4 filters per unit) on 4 of the units **For some reason the supply house did not send us all of the correct filters. We probably will need to run to the supply house in wharton to grab the remaining, but the ones I do have are labeled on the shelf

Arrived on site for the installation of a 96% efficiency two-stage commercial furnace. Prior to beginning work, power to the existing unit was safely shut off at the breaker. Documented the project with before and after photos for reference.

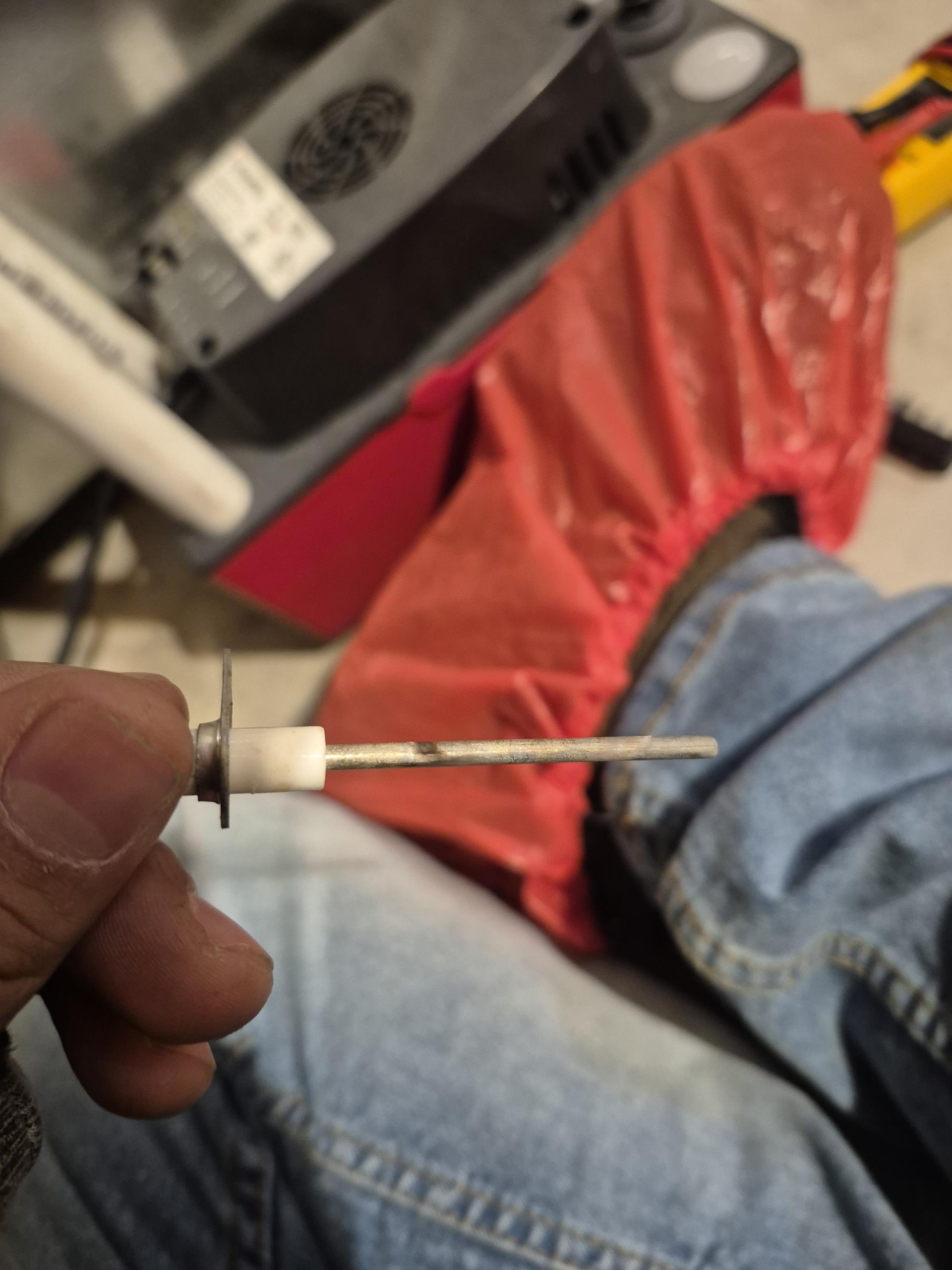

Arrived onsite for fault in combustion exhaust system. Homeowner elected bandaid repair. Removed failed parts and installed new part. Confirmed operation of the system.Took measurements for estimate on replacing the furnace.

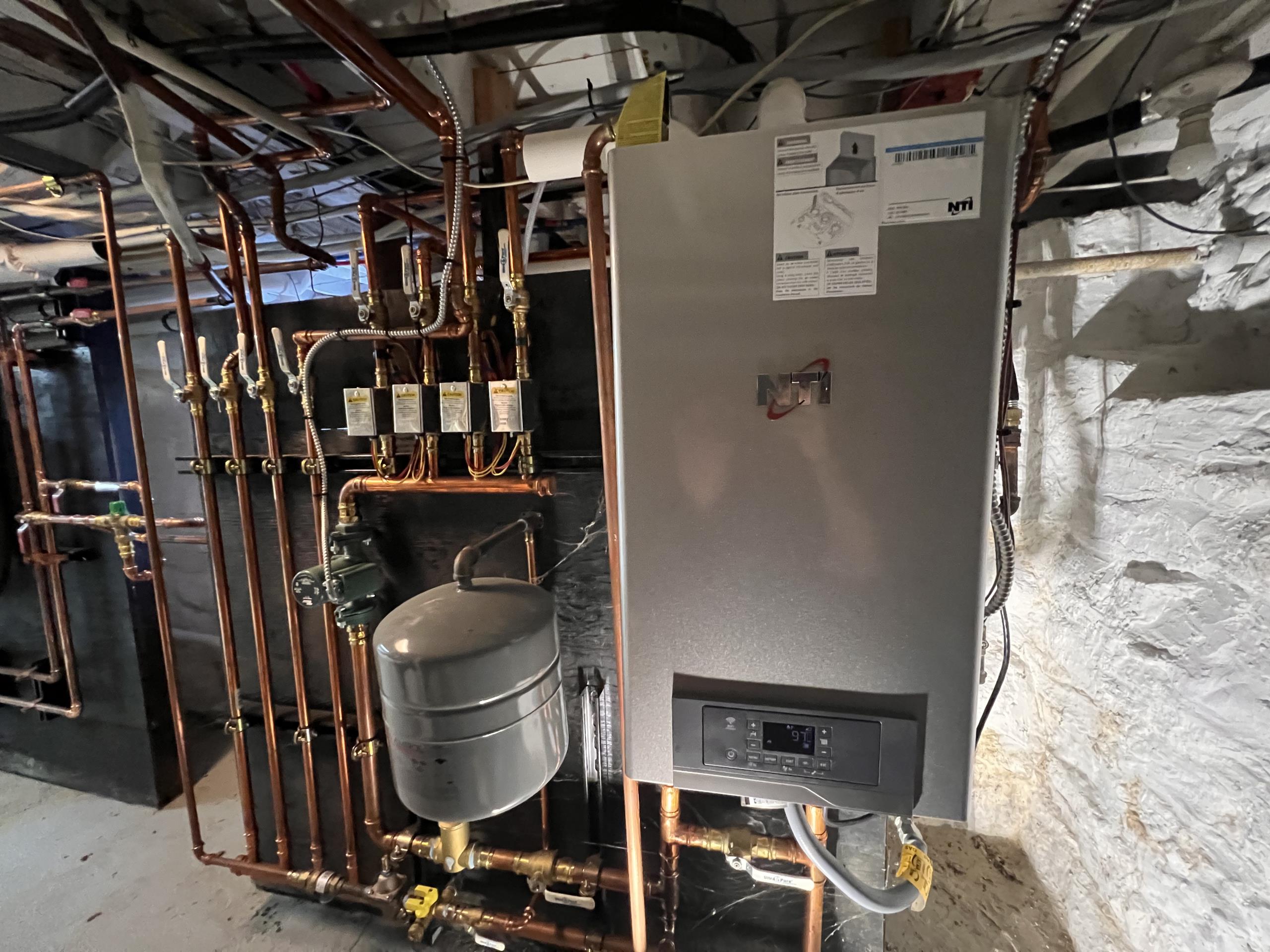

Arrived onsite for no heating service call. Found NTI wall hung boiler with indirect hot water tank. System off due to low pressure safety system; Error 108z Filled the boiler to 17 psi. System fired up. Opened up the system and showed the homeowner the heat exchanger and explained the need for an annual maintenance. He elected to sign up for EPP 1 heating and cooling. Waived diagnostic fee and explained office will reach out to schedule the heating maintenance.

Performed cooling maintenance on 2 split systems. Chemical cleaned outside units. Changed all filters.

Arrived onsite for cooling maintenance on 3 systems. Changed 3-20x25x4 filters. Cleared the condensate line on each system. Cleaned the outdoor condenser coiled with chemical solvent. Opened up each condenser and removed debris and confirmed proper drainage. Performed inspection on the the mechanical, performance, and the safety systems.

Arrived onsite for cooling maintenance on 3 systems. Changed 3-20x25x4 filters. Cleared the condensate line on each system. Cleaned the outdoor condenser coiled with chemical solvent. Opened up each condenser and removed debris and confirmed proper drainage. Performed inspection on the the mechanical, performance, and the safety systems.

Installation of the new water heater includes.

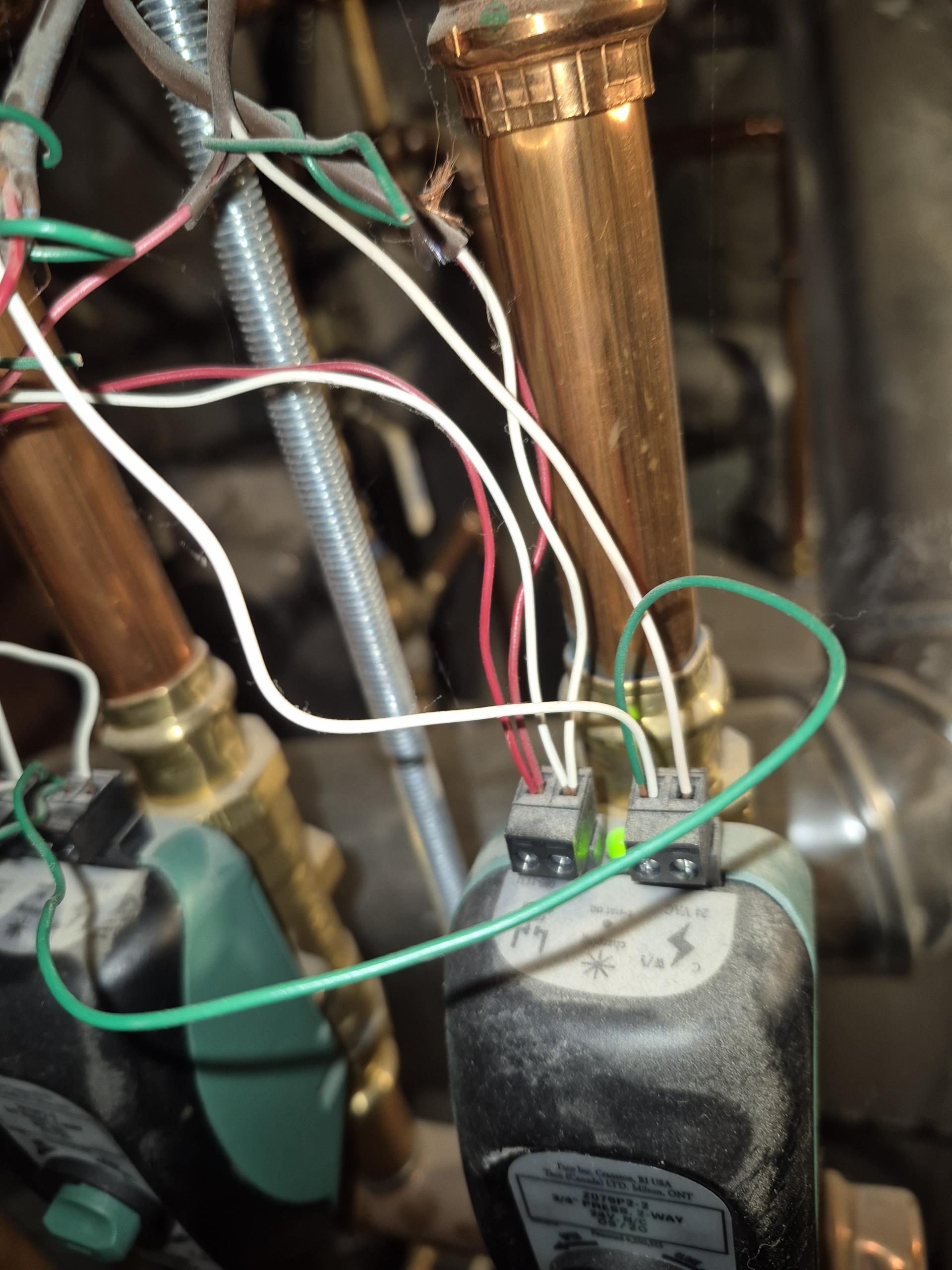

Received a call that the second floor baseboard heat was not operating, upon arrival we found that the baseboards were cold but the pump is operating. There are no bleeder valves downstairs to be able to purge air from the system, I was able to access several air vents between the second floor and the attic and between increasing the water pressure in the system and getting the air vents to manually bleed out we were able to get water flow. There is still a significant amount of air that will need to be bled through a proper removal system, but for now the heat is running and operating.

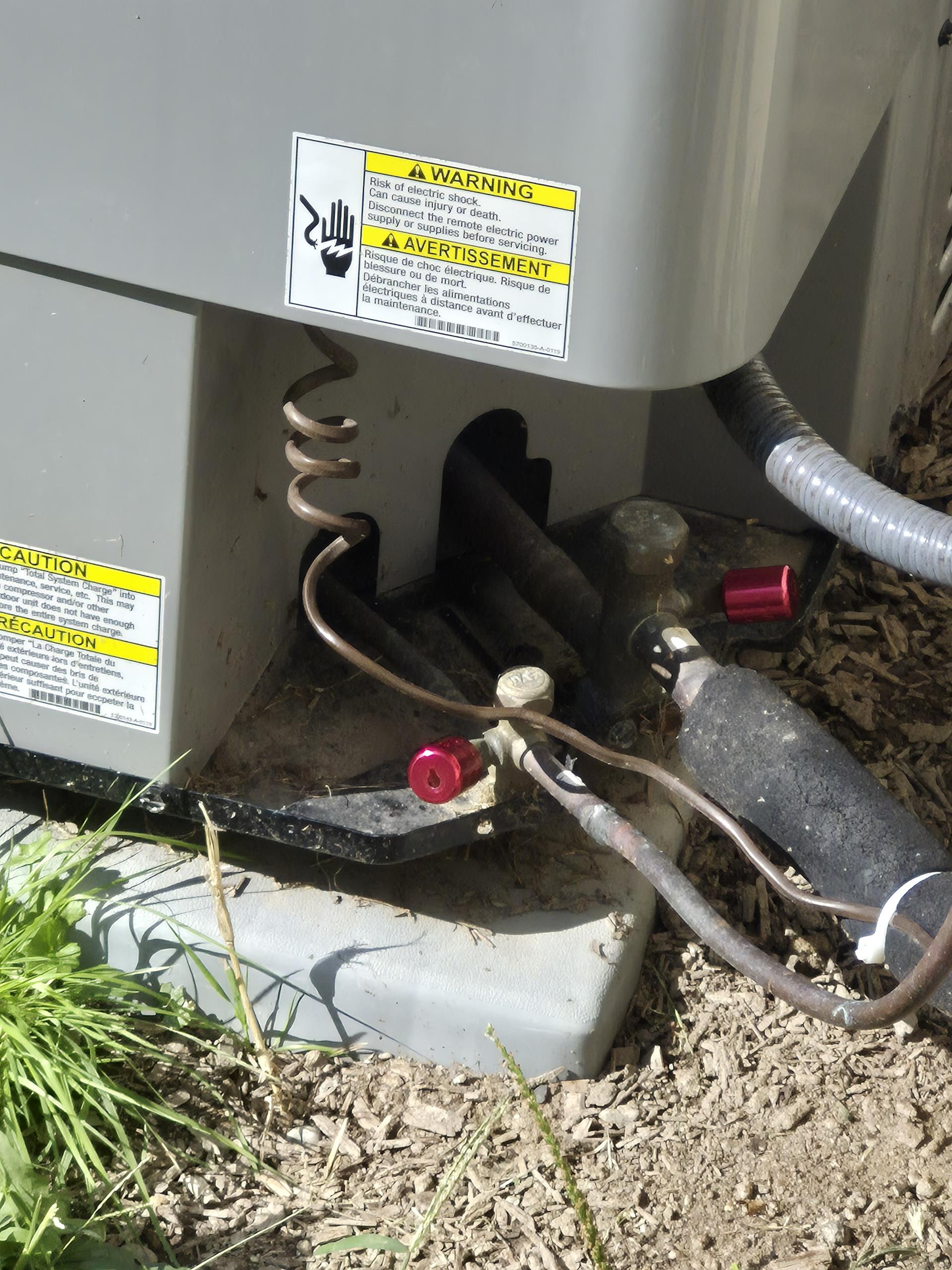

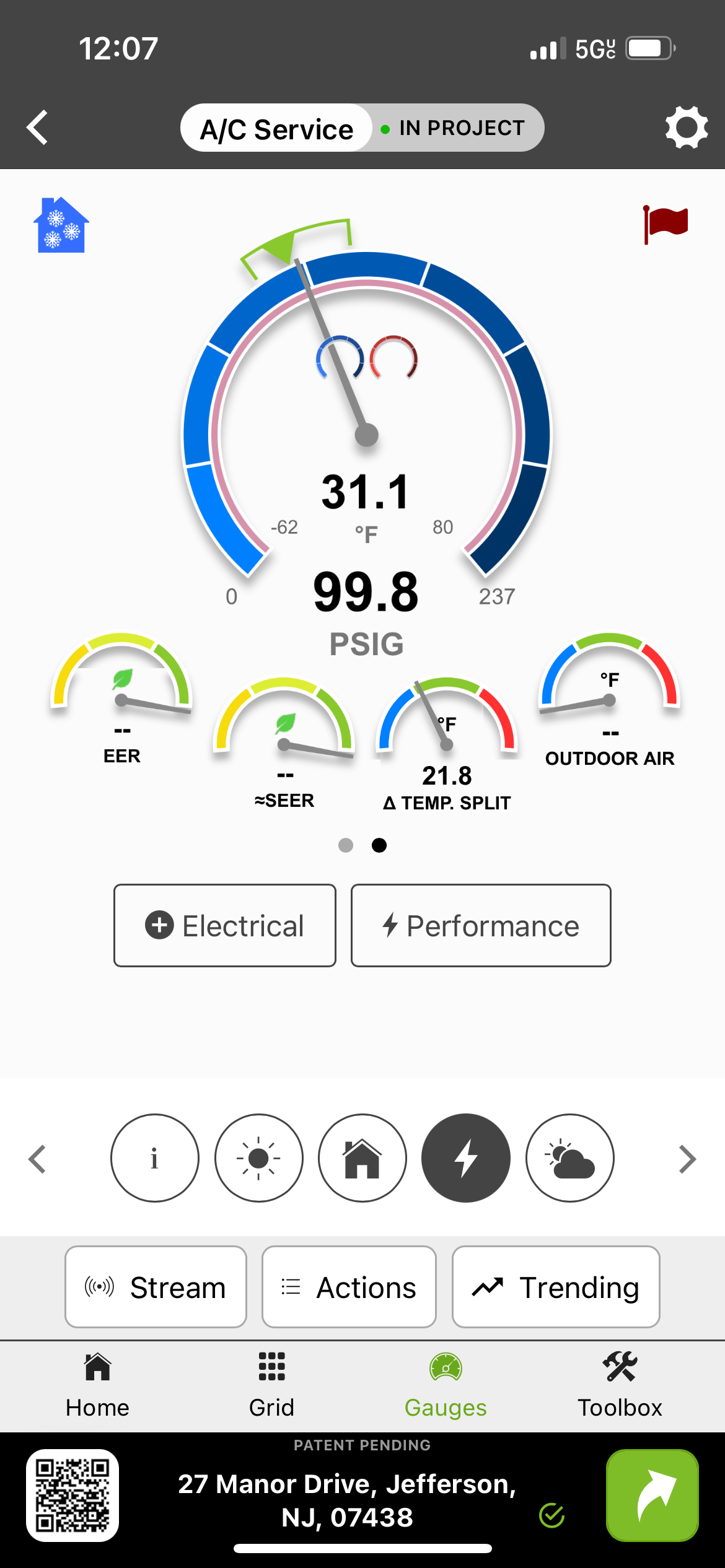

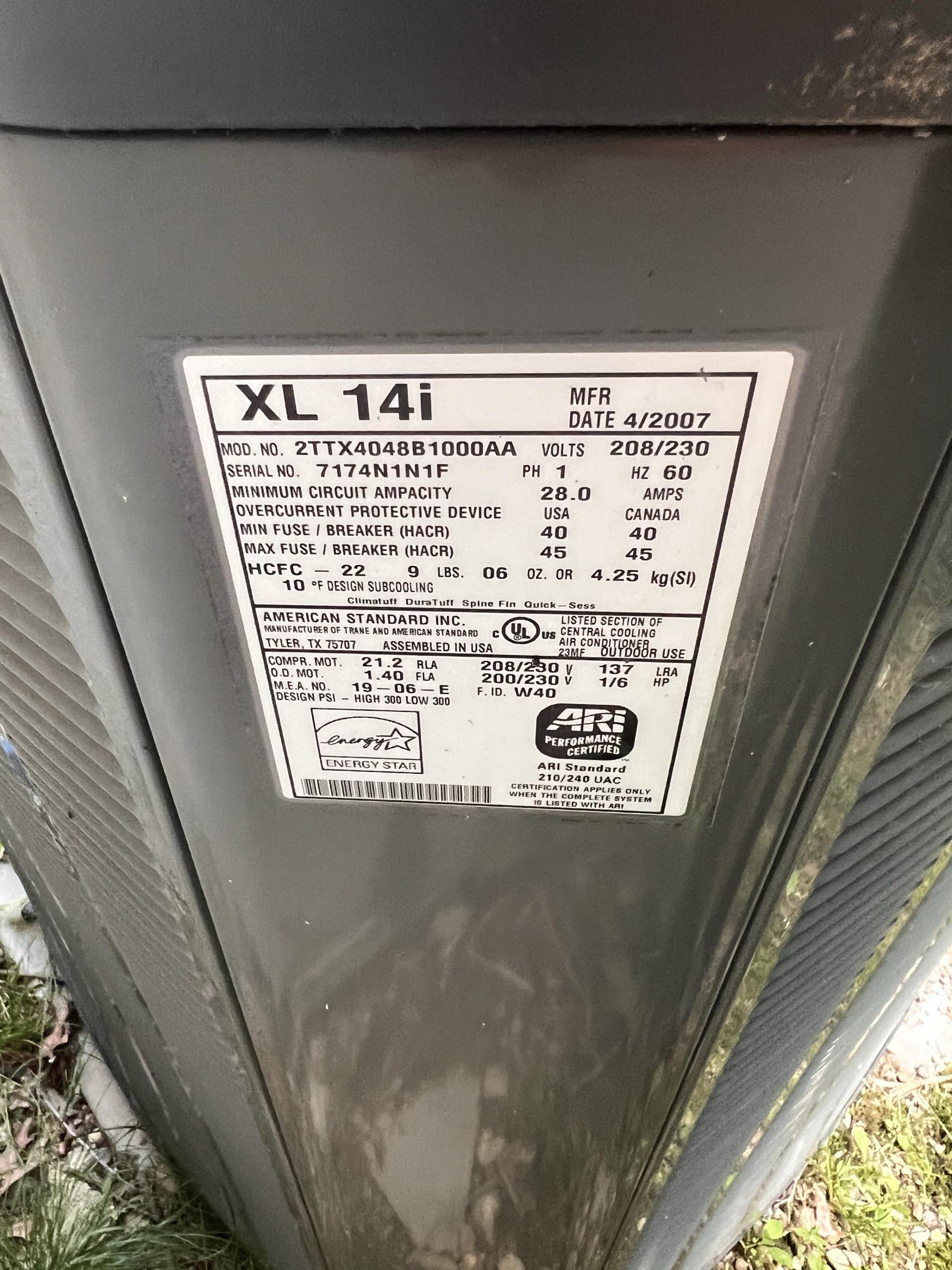

Arrived onsite for ac maintenance on 1 system. Asked customer to turn AC on to confirm operation. Outside condenser is not level and surrounded by earth. Recommend leveling to ensure compressor receives correct amount of lubricant. Checked all electrical. Chemically Cleaned outside unit, measured pressures for R22 at 50/112 psi with 13 degree sub cooling with outside temperature at 61degrees. Measured temperature drop at 20 degrees. System may be 5 percent low on refrigerant. Cleaned out condensate line. Inside coil rusting. Observed rusting on outside cabinet which means the system may not be properly remove condensate. This could lead to a leak in the ceiling. Did not observe a ceiling protection device. Performed efficiency test utilizing MeasureQuick. System running but recommend replacing due to age and recommended repairs..

Arrived onsite for ac maintenance on 1 system. Asked customer to turn AC on to confirm operation. Outside condenser is not level and surrounded by earth. Recommend leveling to ensure compressor receives correct amount of lubricant. Checked all electrical. Chemically Cleaned outside unit, measured pressures for R22 at 50/112 psi with 13 degree sub cooling with outside temperature at 61degrees. Measured temperature drop at 20 degrees. System may be 5 percent low on refrigerant. Cleaned out condensate line. Inside coil rusting. Observed rusting on outside cabinet which means the system may not be properly remove condensate. This could lead to a leak in the ceiling. Did not observe a ceiling protection device. Performed efficiency test utilizing MeasureQuick. System running but recommend replacing due to age and recommended repairs..

Arrived onsite for ac maintenance on 1 system. Asked customer to turn AC on to confirm operation. They mentioned the system had issues keeping up last year. Checked all electrical. Chemically Cleaned outside unit, measured pressures for R22 at 61/110 psi with 3degree sub cooling with outside temperature at 47 degrees. Measured temperature drop at 20 degrees. Cleaned condensate line. Observed rusted evaporator coil. Noticed water stains in the air handler. Observed failed motor seal on blower motor. System has used over 90% of its life. Performed efficiency test utilizing MeasureQuick but could not get stable readings. System running but not well. Discussed with homeowner and they elected to replace the system. Waived fee for maintenance.

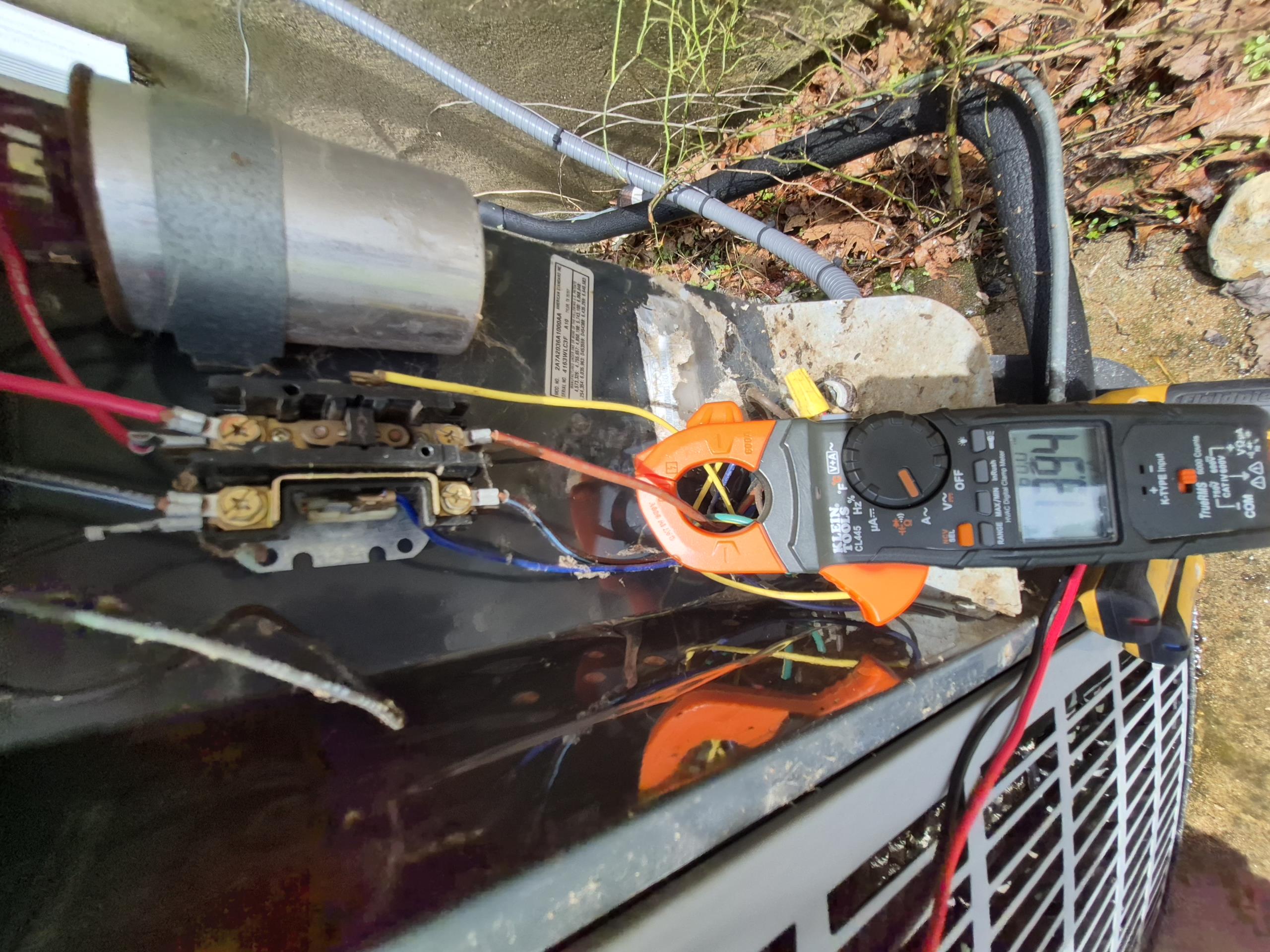

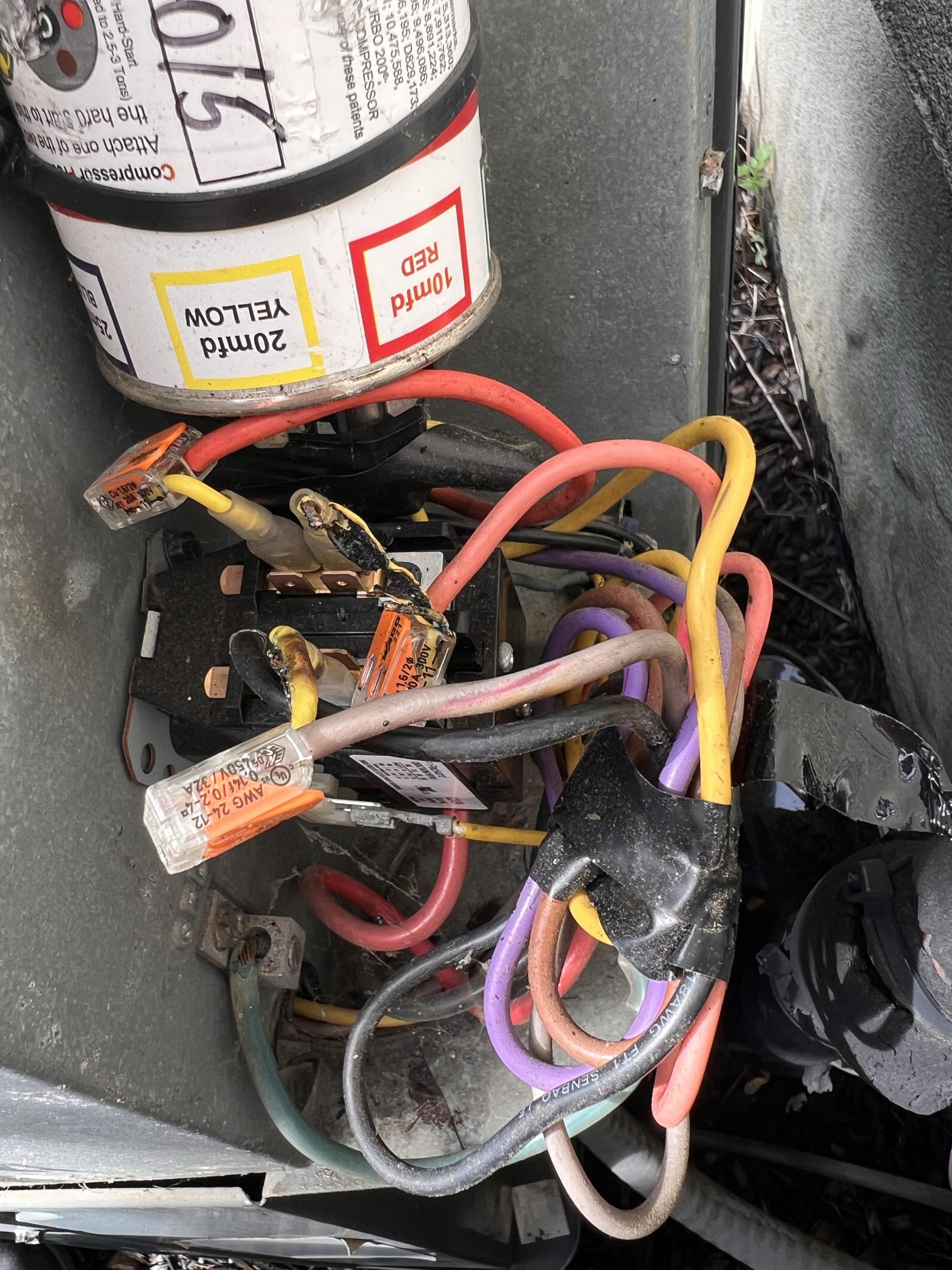

Arrived onsite for ac maintenance on 1 units. Asked customer to turn AC on to confirm operation. Checked all electrical: found fault in electrical wiring. Melted and burnt connections. It appears system is drawing a lot of power and amps which is causing the wires to melt. Observed the condenser fan motor and compressor motor are noisy. Chemically Cleaned outside unit, measured pressures for R22 at 50/110psi with 20 degree sub cooling with outside temperature at 47 degrees. Measured temperature drop at 24 degrees. System may have multiple refrigerant issue. Performed efficiency test utilizing MeasureQuick. Received a C- score. System running but has used over 90% of its life and requires repairs.

Arrived onsite for maintenance on 3 ac systems. Cleaned outside condensers and coils. Changed all filters. Confirmed operation of each system. Cleaned the condensate line. Performed inspection of the mechanical, performance and safety systems.

Arrived onsite for maintenance on 3 ac systems. Cleaned outside condensers and coils. Changed all filters. Confirmed operation of each system. Cleaned the condensate line. Performed inspection of the mechanical, performance and safety systems. 2nd Floor thermostat requires triple A batteries.

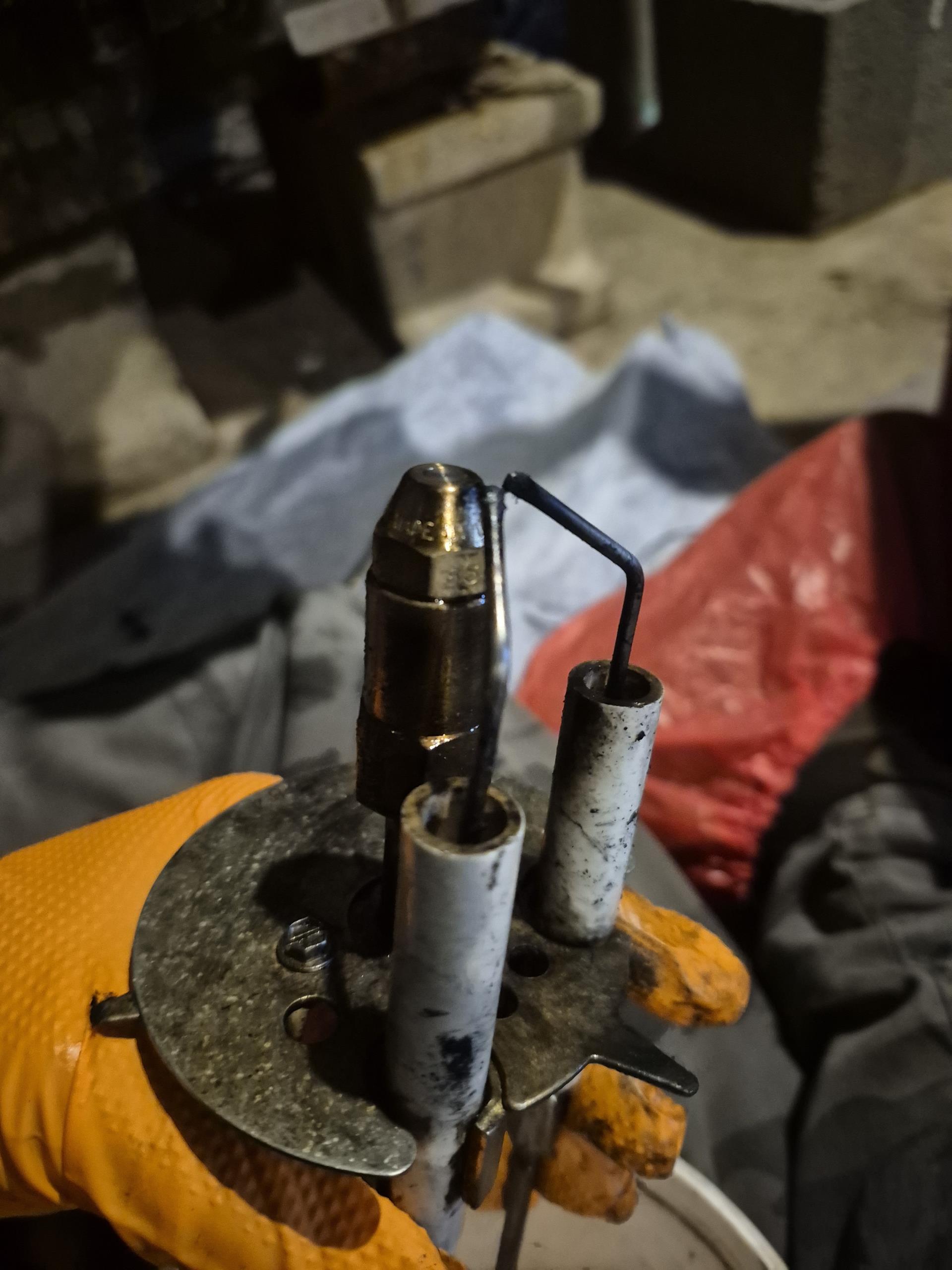

Came to install customer supplied natural gas gun convertor kit. We removed the existing oil burner and capped and sealed off the oil lines. We then proceeded to scrub and clean out all soot and particles from the boiler and installed and leveled new gas converter with new gaskets. We ran 3/4 gas line into the new burner We tested for leaks and painted the pipe to prevent rusting in the future. We proceeded to wire high and low voltage into the new burner We ensured everything lit fired and shut off properly. Everything is operational at this time.

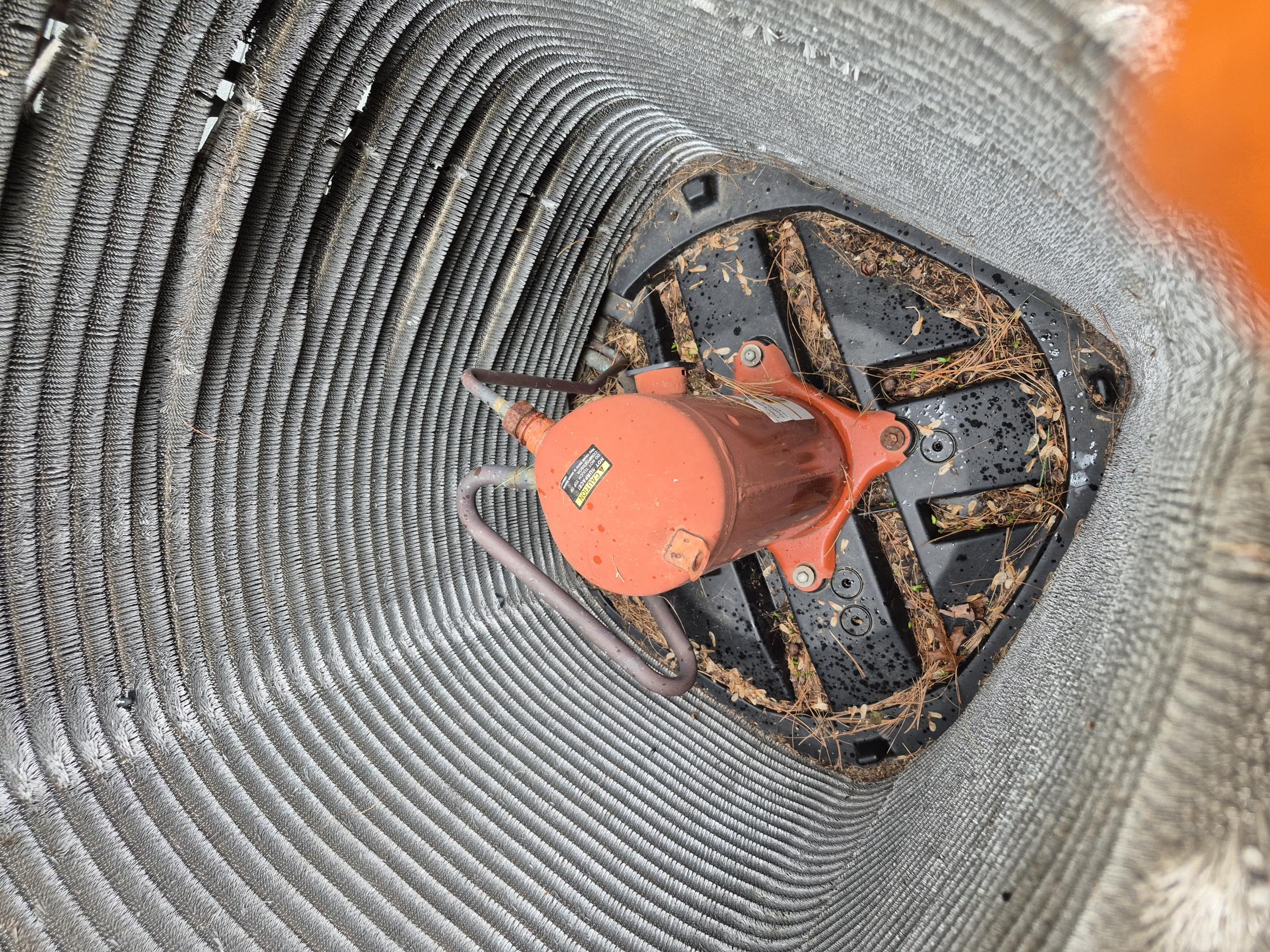

Arrived onsite for ac maintenance on 3 Systems. Turn AC on to confirm operation. Removed top of all condensers, cleaned out all debris. Chemically Cleaned outside units.

Came to install customer supplied natural gas gun convertor kit. We removed the existing oil burner and capped and sealed off the oil lines. We then proceeded to scrub and clean out all soot and particles from the boiler and installed and leveled new gas converter with new gaskets. We ran 3/4 gas line into the new burner We tested for leaks and painted the pipe to prevent rusting in the future. We proceeded to wire high and low voltage into the new burner We ensured everything lit fired and shut off properly. Everything is operational at this time.

Removed old 40 gallon propane water heater. Installed new 50 gallon natural gas, water heater. And still all new 4-in smoke pipe hooked up new gas piping also hooked up natural gas grill pool heater and converted dryer. Everything is operational and tested at this time.

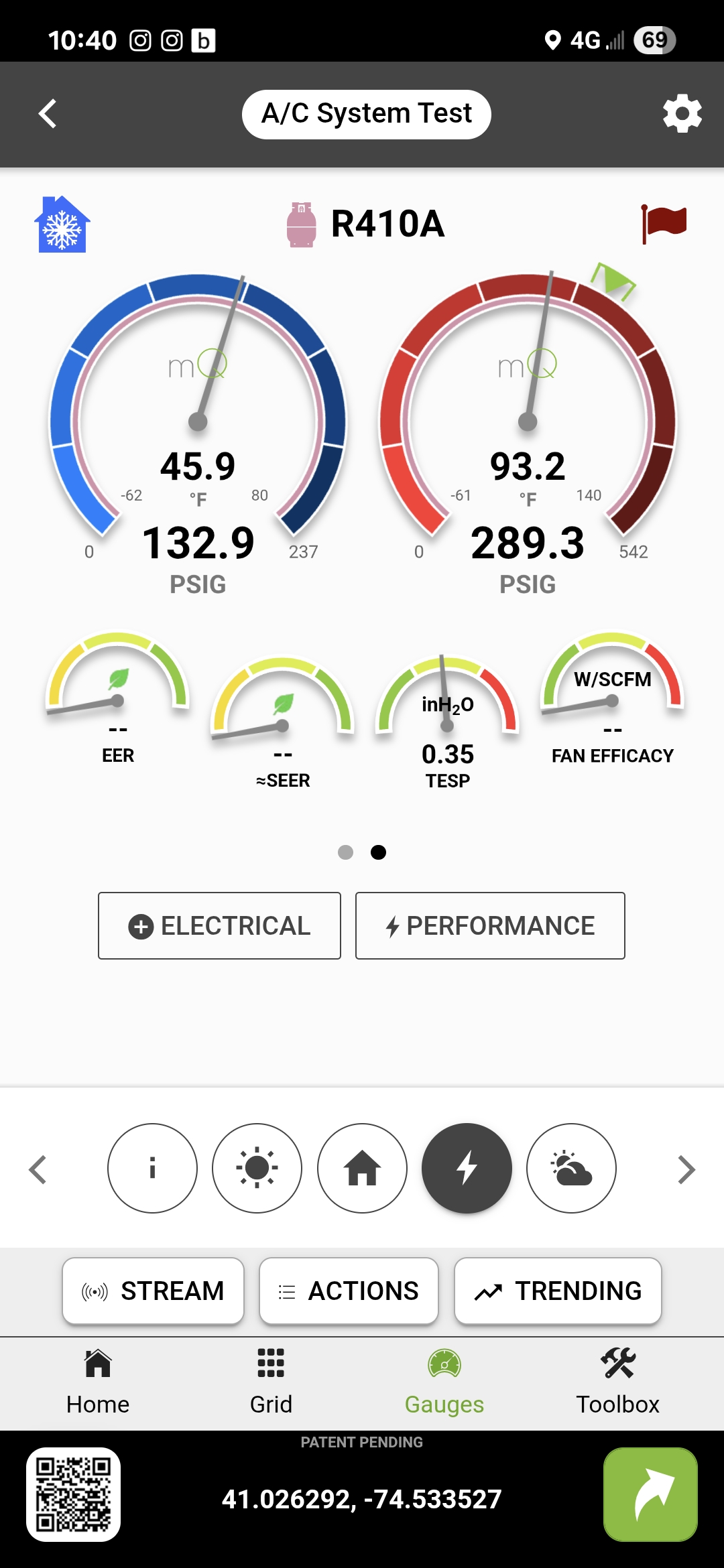

Arrived onsite for ac maintenance on 1 systems. Upon arrival homeowner mentioned issue with the heat. Performed diagnostic and found condensate water trapped in the flue pipe which would trip the safety system to turn off. Pitched the flue pipe to drain the combustion water. Tighten the strapping. System ran as it should. If this continues we’ll have to come up with a more permanent solution of renovating the glue pipe. Asked customer to turn AC on to confirm operation. Checked all electrical. Found fault in Voltage Enhancement System. Homeowner elected to wait on the repair. Chemically Cleaned outside unit, measured pressures for 410a at 80/196psi with 7 degree sub cooling with outside temperature at 56 degrees. Measured temperature drop at 20 degrees. Refrigerant might be undercharged. Cleaned evaporator coil and blew out condensate line. Every evaporator coil is rusting. Performed efficiency test utilizing MeasureQuick. System running but may not perform on a hot day..

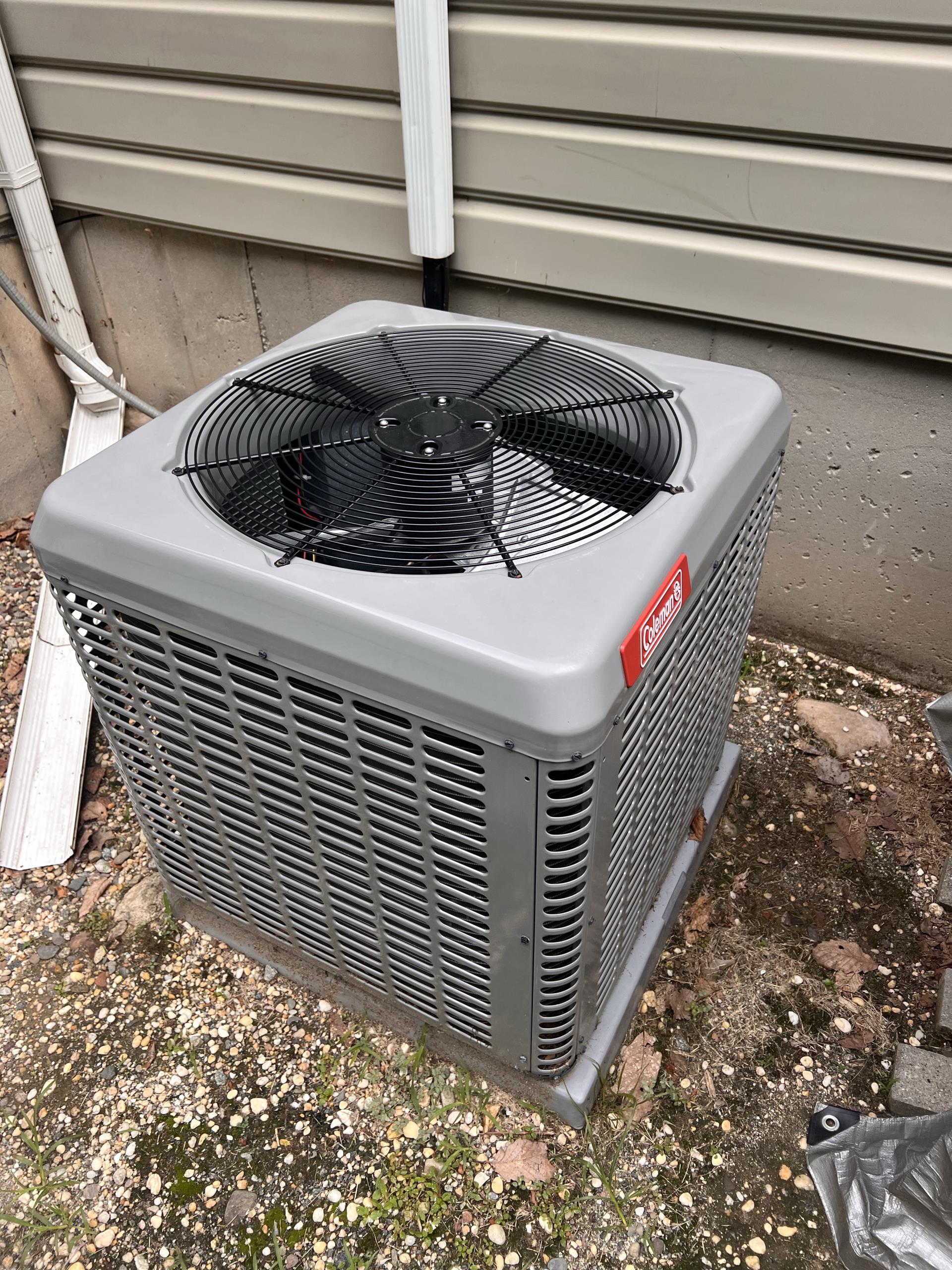

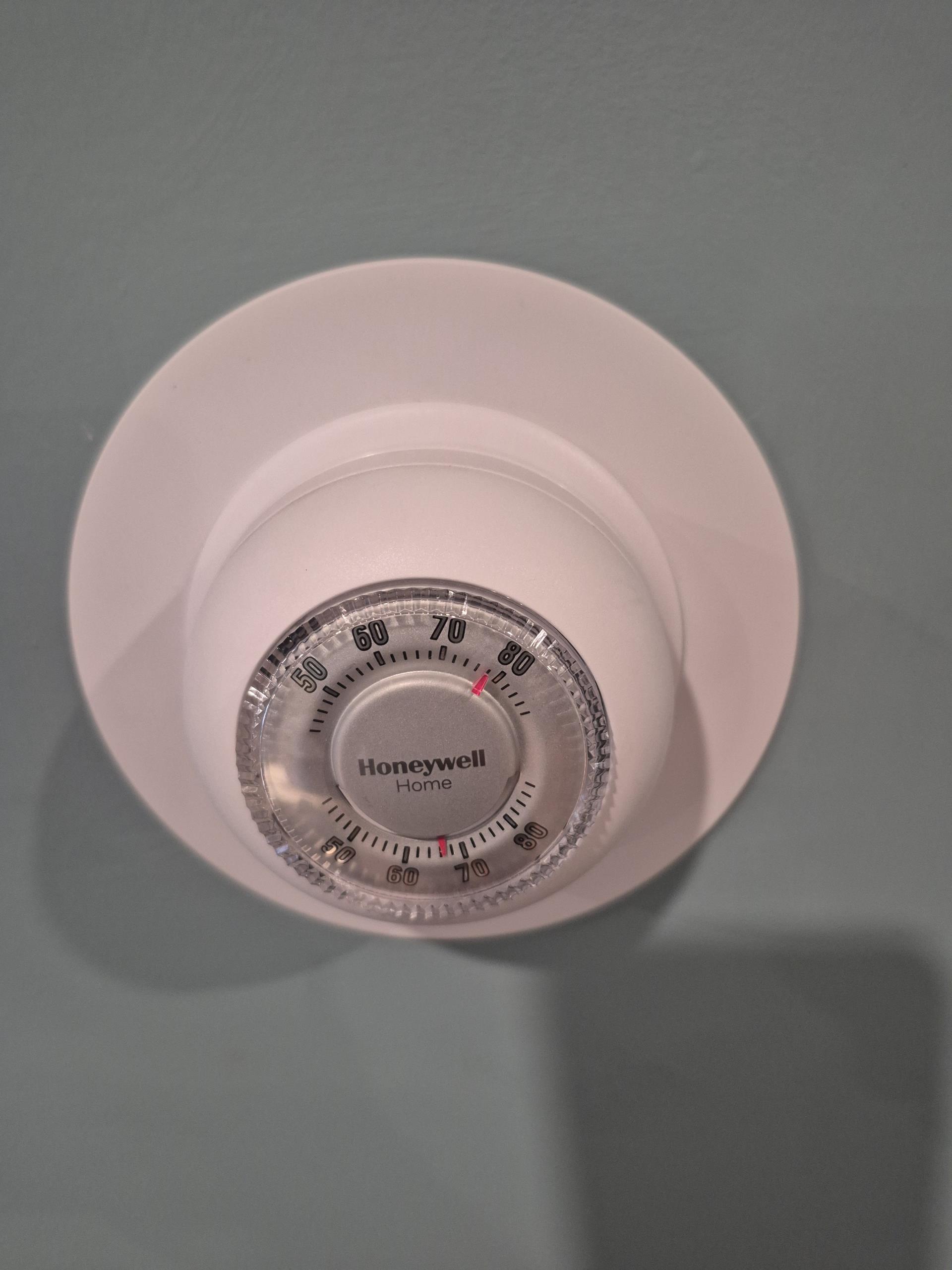

Arrived onsite for ac maintenance on 2 systems. Opened outside condenser units. Removed all debris. Chemically cleaned the coils. Cleaned the drains. Inspected all electrical. Cleaned electric panel. Changed all filters. 2-20x25x4 .For the Coleman condenser in front of the building, no power to the unit from the Generac box. Inspected the box found the voltage control system engaged but not voltage passing to the condenser. Recommend contacting an electrician. Found Honeywell thermostat with low battery alert. Replaced with new batteries and still observed low battery indicator and alert. Possibly a fault in the thermostat.

Cooling Only System Maintenance - Seasonal Plan Seasonal maintenance for (1) split system up to 5 ton cooling capacity, either roof or ground mounted Includes replacing of standard fiberglass air filter (pleated higher performance filters can be added at an additional cost) , includes replacing blower belt (if applicable), grease or oil bearings, chemically clean the condensing unit, clean the condensate drain line, check operation of all safety devices, check operation of operating controls, check all motors, compressor and refrigerant charge, visual inspection of the duct system. With a Comfort Club service you will also receive the added benefits of a 10% discount on repairs and diagnostic fees, service within 48 hours of placing the call and a water heater flush

Arrived onsite for ac maintenance on 2 units. Asked customer to turn AC on to confirm operation. Removed top of both condensers, cleaned out all debris. Chemically Cleaned outside units. Found Significant organic growth and did my best to removed

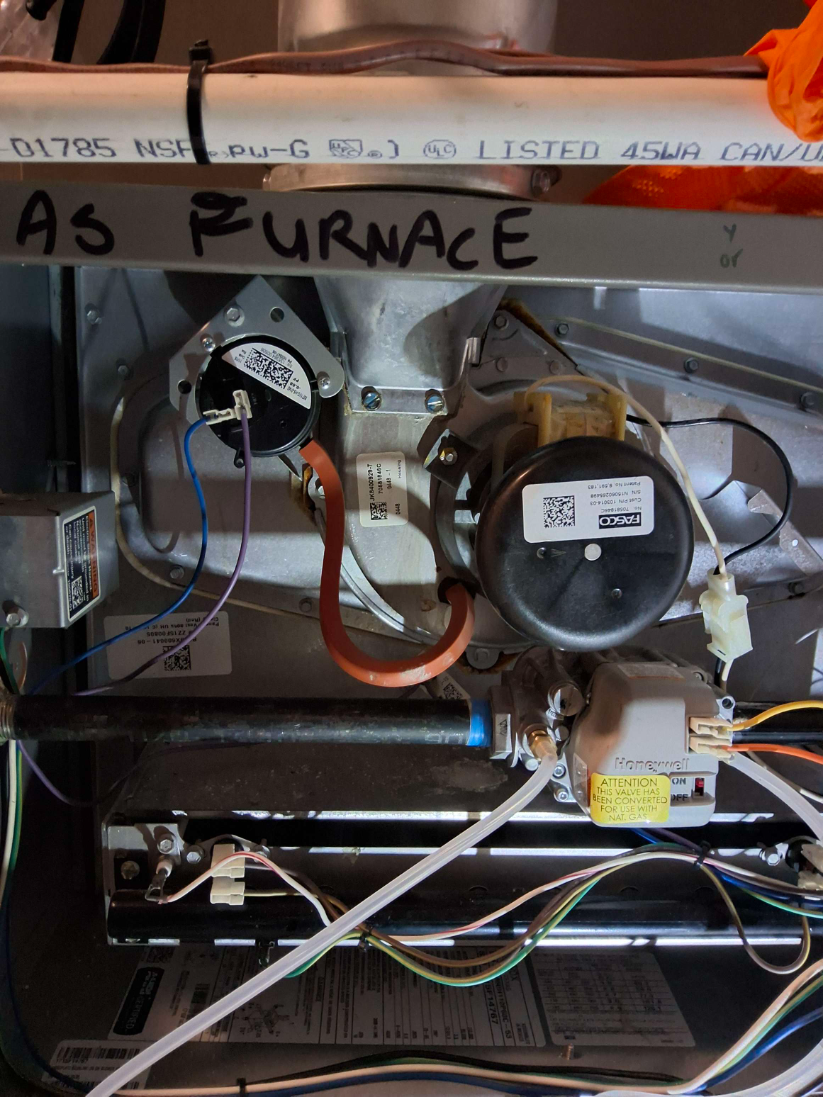

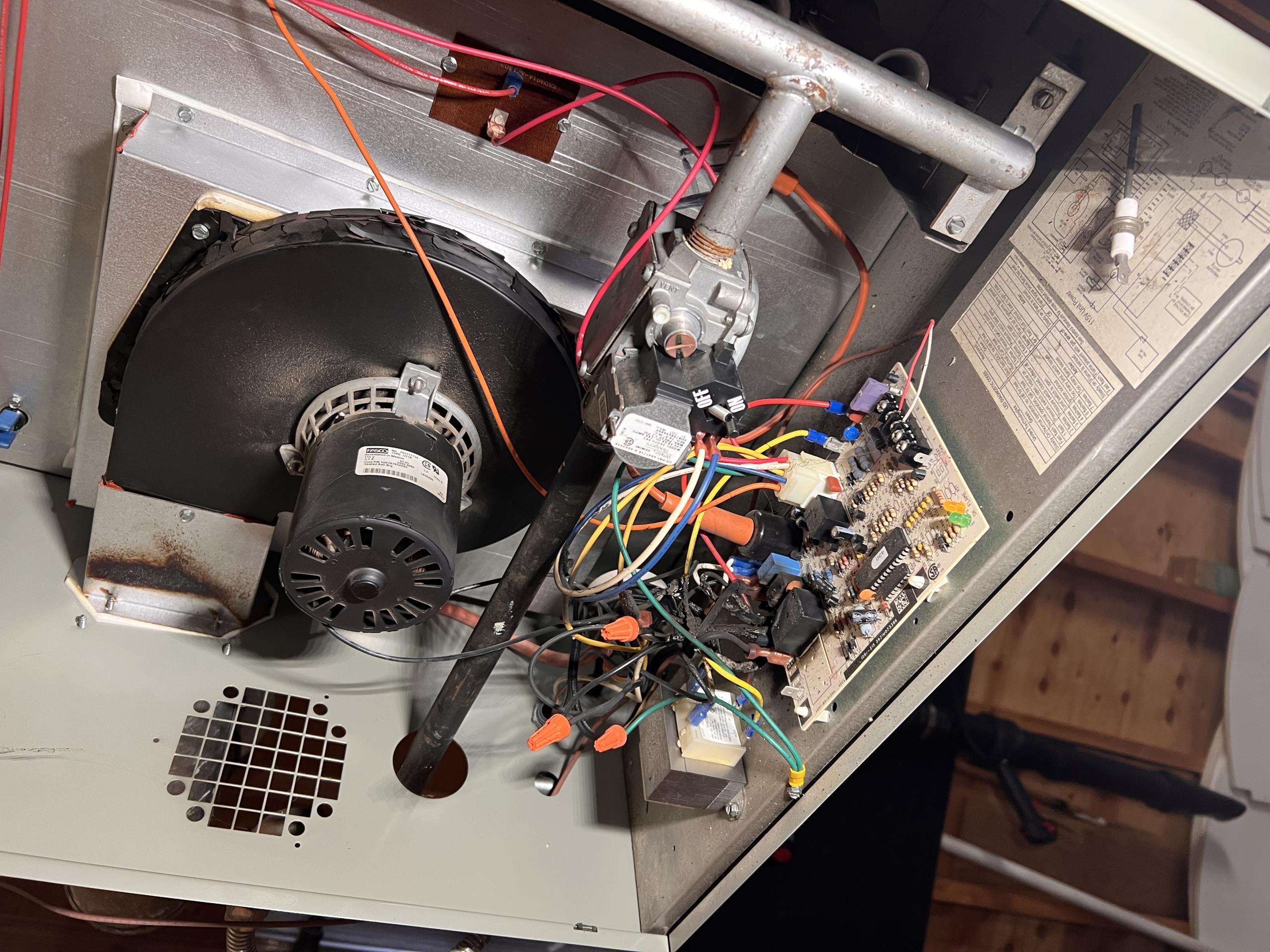

Arrived onsite for mid season maintenance. Started by confirming operation of all systems. Found one furnace not operational. Changed all filters. Performed diagnostic on non-operational furnace. Found recently replaced barometric hose with rodent teeth marks in it. Replaced hose. Recommend exterminator.

The installation of the new 50-gallon indirect water heater (Crown Mega-Stor M# MS2-050) includes a relief valve piped to within 6 inches of the ground, along with all necessary hot and cold piping connections integrated into the existing system. Additionally, the setup includes boiler supply and return piping connections, low-voltage wiring connected to the boiler for smooth operation, and a bonding wire kit to ensure proper grounding and electrical safety.
